Tech Specs
General Specs.

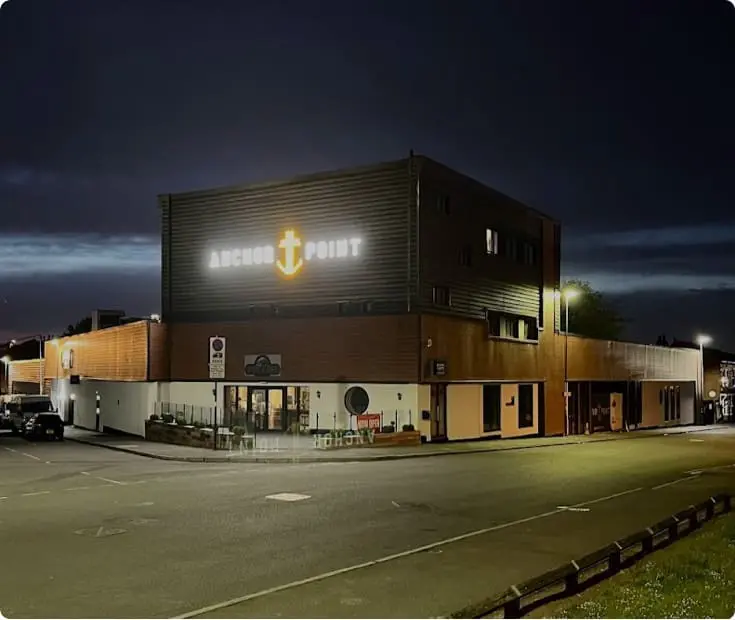

Venue Address:
58 Chester Street, Aston, Birmingham B6 4BE
Telephone Number:
0121 594 0649
Parking:
39 x spaces available in gated car park 3 x handicapped near entrance with accessible ramp Plenty of street and paid parking available (+/-580)
Internet Access:
WiFi available through guest WiFi network
Truck Load In:
Load in via car park Loading bay at floor & stage wing level, equipment must be manually lifted to reach stage level Export
Auditorium Specs
Capacity:
Standing - up to 1,000
Theatre seating - up to 500
Banquet Seating - up to 350
Cabaret seating - up to 250
(Limited tables carried in house, additional tables will be hired in)
Room Dimensions:
101ft x 85ft(31m x 26m)

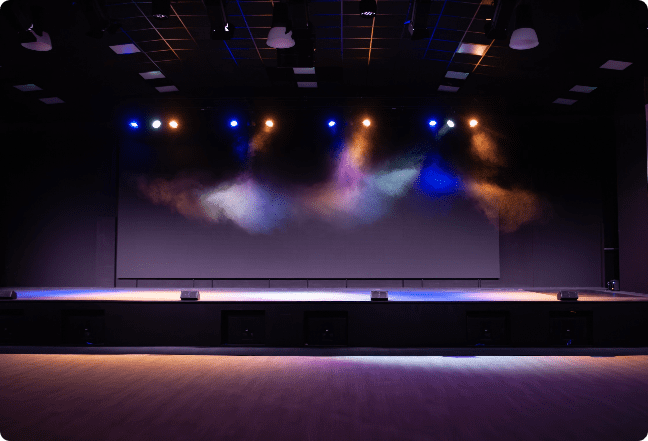

Stage Dimensions:
Stage - 15m x 5m (49.2ft x 16.4ft)
Clearance over stage - 4.6m (15ft)
Floor to stage - 84cm (2.75ft)
Dressing Rooms / Green Rooms:
Main Green room accessible from backstage Two further dressing rooms available with showers and toilets
Power:
16A, 32A power, stage right 13A amp stage right and left 3 Phase and 13A in house truss
Audio:
PA- KV2 ES System
Mains - 3x KV2 ES1.0
Subs - 8x KV2.5
Centre Fill - 6x KV2 ESD5
Amps - 3x KV2 EPAK 2500
Console
FOH - Allen and Heath dLive 3500
Monitor- Allen and Heath SQ6
Equipment
8x Wireless microphone
8x Wireless monitor receiver
Further gear available upon request
Lighting:
Desk
VistFT EX
Chroma Q Vista 3 operating system, touch
screen display
House:
12x Chauvet F-915FC fresnel
6x Chauvet R2x wash
2x Chauvet R3 spot
Stage:
8x Chauvet P-56FC LED par
4x Chauvet R2X wash
1x Chauvet AmHaze Eco
(Lighting plot available upon request)
Video:
LED video wall (4m X 10m, 2560x1025)
2x Philips 90” foldback screen for
mirrored display
Atem Constellation
Barco s3
